Industrial Mini PC with 6 RS232 Ports Low Power 12V and 6 USB Ports Fanless Design for Embedded Applications

Name: Industrial Mini PC with 6 RS232 Ports Low Power 12V and 6 USB Ports Fanless Design for Embedded Applications
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: H26A 6USB
Price: 169.00 USD
Availability: InStock

Nama merek:	HLY
Nomor Model:	H26A 6USB
MOQ:	1

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

inti prosesor:

Quad core

Opsi CPU:

i7-5500U/i7-4500U/i5-4200U/i3-4010U/3805U/2955U

GPU:

Grafik HD In-tel 5500/4400

Memori video:

256 MB

Jenis RAM:

DDR3L 1333/1600MHz

Slot RAM:

2*204 pin JADI-DIMM

Max Ram:

16GB (2x8GB)

Pilihan penyimpanan:

1x mSATA + 1x 2,5' SSD/HDD

Ports:

6xUSB, 1xVGA, 1xH-D, 2xLAN, 6xRS232

Kecepatan lan:

10/100/1000 Mbps

Slot Ekstensi:

1x Mini PCIE, 1x slot kartu SIM

Input daya:

12v 5a

Suhu operasi:

-20℃ hingga 65℃

Ukuran:

235mmx137mmx51mm

Struktur:

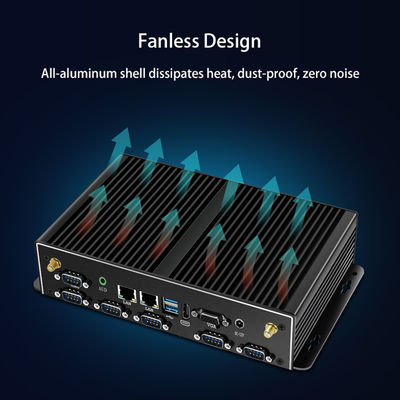

Desain tanpa kipas, semua casing paduan aluminium

Menyoroti:

6 RS232 Industrial Mini PC

Low Power 12V Embedded Computer

6 USB Ports Fanless Mini PC

Deskripsi Produk

HelorPC Industrial Mini Computer

Technical Specifications

Processor	Intel Core i7-5500U Processor, 4M Cache, up to 3.00 GHz, 2 Core 4 threads, TDP:15W Intel Core i7-4500U Processor, 4M Cache, up to 3.00 GHz, 2 Core 4 threads, TDP:15W Intel Core i5-4200U Processor, 3M Cache, up to 2.60 GHz, 2 Core 4 threads, TDP:15W Intel Core i3-4010U Processor, 3M Cache, 1.70 GHz, 2 Core 4 threads, TDP:15W Intel Pentium Processor 3805U, 2M Cache, 1.90 GHz, 2 Core 2 threads, TDP:15W Intel Celeron Processor 2955U, 2M Cache, 1.40 GHz, 2 Core 2 threads, TDP:15W

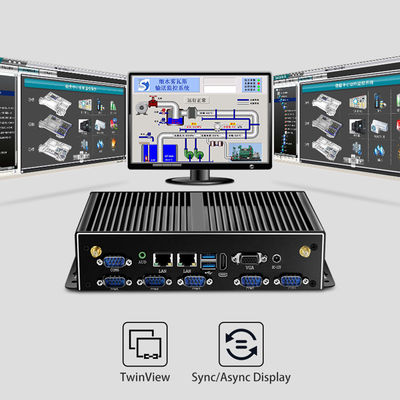

Display	GPU: 3805U/2955U: HD Graphics \| i7-4500U/i5-4200U/i3-4010U: HD Graphics 4400 \| i7-5500U: HD Graphics 5500 VGA: Maximum resolution 1920*1080@60Hz HD: Maximum resolution 2560×1600@60Hz Dual display: VGA + HD, Support for Synchronous or Asynchronous Display
Memory	2GB/4GB/8GB DDR3L 1333/1600MHz 1.35V, 2*204 pins SO-DIMM slot, Max support 2 x 8GB (3805U/2955U Max to 8G)
Hard Disk	SSD: 1Full Height mSATA socket, 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD HDD: 1SATA, Connect by SATA data/power cable
Supported OS	Official Win7/Win8/Win10 \| ubuntu/LINUX/CENTOS

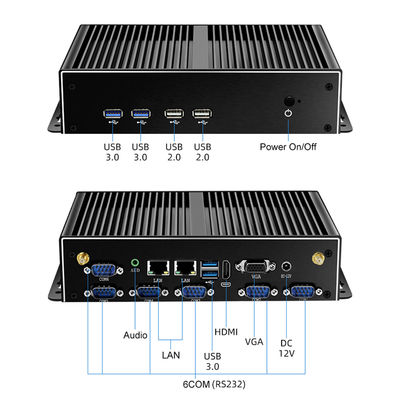

Ports	4x USB3.0, 2x USB2.0, 1x VGA, 1x HD, 2x LAN, 6x RS232 COM, 1x AUD
LAN	10/100/1000 Mbps Intel 211AT, support wake on lan
Audio	Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension	1× full height size Mini PCIE for WiFi/3G/4G module, 1× SIM card slot
Power Requirement	DC-IN5.5*2.5, 12V 5A power input, DC 12V 5A power supply included
Working Environment	Operating Temperature: -20℃ to 65℃ Storage Temperature: 15℃ to 35℃ Relative Humidity: 5% to 95% (non-condensing)
Dimensions	235mm × 137mm × 51mm
Package Contents	1 x Mini PC, 1 x User manual, 1 x Power Cord, 1 x SATA data and power cable

Additional Product Images

Company Information

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong and specialized in mini computers since 2013, has our own professional motherboard manufacturer. We've developed more than 50 kinds of products, applied in different fields including AI, office, education, entertainment, advertising, transport, military, and industrial applications. Our mini PCs are sold in more than 60 countries and regions, with annual sales exceeding one million units.

HLY carries products from over 20 manufacturers of computer components, communications products and specialized electronics for automation control, allowing us to offer leading-edge devices with the latest technological developments at competitive prices.

With more than 100 employees including experienced technical staff, dedicated sales teams, and responsible production personnel, we maintain strict quality control throughout all stages of production. Our engineers excel at analyzing requirements and developing customized solutions, making us an ideal partner for ODM/OEM projects.

Packaging & Shipping

Power Adapter

We provide multiple specifications of power supplies, selected by default based on your shipping address. Special requests can be accommodated with prior notice.

Payment Methods

We accept L/C, DA, DP, T/T, Western Union, Alibaba payment, and other negotiable payment methods.

Shipping Options

DHL	3-5 days delivery, safe, high taxes, suitable for South America and Europe, good service
FedEx	3-5 days delivery, safe, high taxes, suitable for South America, Europe and Southeast Asia, good service
Aramex	6-15 days delivery, high taxes, without battery, suitable for the Middle East
POST	Slow delivery, low taxes, suitable for every country, cheaper but less safe
RETS Express	10-15 days delivery, low taxes, just for Russia, cheaper, safe with good service
Alibaba	Within 20 days, safe, good service
Negotiation	Custom shipping arrangements available

Frequently Asked Questions

What is the warranty policy?

The first year we provide free repair service. The second and third years, we provide free repair but charge for any replacement parts needed.

Can I print my logo on the mini PC?

Yes, please provide your logo file and we will confirm the design effect with you before production. We welcome OEM/ODM projects.

What is the minimum order quantity?

We can sell single units for testing purposes.

How long does packaging take after purchase?

Approximately three days for inspection and assembly. Typically, 10 units ship in about 3 days, and 50 units in about 8 days. Contact us for specific timelines.

Are your mini PCs in stock?

Yes, most models are in stock. Please confirm inventory with us before ordering.
