HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications

Nama merek:	HLY
MOQ:	2
harga:	$420.10

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

Model CPU:

i7 7500U, i5 7200U, i3 4005U

inti CPU:

2-4 inti

Utas CPU:

4-8 utas

Frekuensi CPU:

1.7GHz-3.5GHz

Jenis RAM:

DDR4 2133/2400MHz

Slot RAM:

2*JADI-DIMM

Max Ram:

32GB

Slot Penyimpanan:

2*SATA, 1*mSATA

Resolusi tampilan:

HD 4096*2304@24Hz, VGA 1920×1080@60Hz

Kecepatan Ethernet:

10/100/1000 Mbps

Input daya:

DC 12V 5A/60W

Suhu operasi:

-20°C hingga +65°C

Konsumsi daya:

15w

Sistem pendingin:

Tanpa kipas

Bahan kasus:

Paduan Aluminium

Menyoroti:

RS232 Industrial Mini PC

MSATA Fanless Industrial Computer

Compact Size 182x126x63mm Embedded Computer

Deskripsi Produk

HLY Mini PC - Industrial Fanless Computer

High-performance industrial mini PC featuring Intel Core processors, dual Gigabit Ethernet, multiple display outputs, and fanless aluminum alloy design for reliable operation in demanding environments.

Technical Specifications

Processor Options	Intel Core i7 7500U (2 core/4 threads, 2.7GHz-3.5GHz, 15W TDP) Intel Core i5 7200U (2 core/4 threads, 2.5GHz-3.1GHz, 15W TDP) Intel Core i5 8350U (4 core/8 threads, 1.7GHz-3.6GHz, 15W TDP)

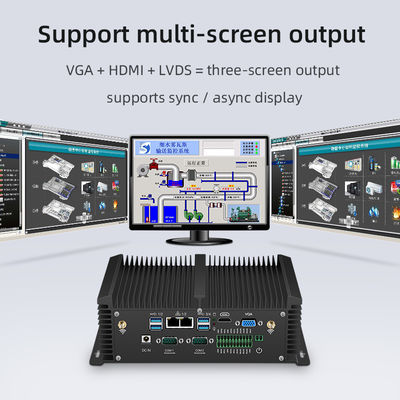

Graphics & Display	Intel HD Graphics 620 HDMI max resolution: 4096×2304@24Hz VGA max resolution: 1920×1080@60Hz
Memory & Storage	2×260-pin SO-DIMM slots (DDR4 2133/2400MHz) Supports up to 32GB RAM 2×SATA ports + 1×full-height mSATA socket

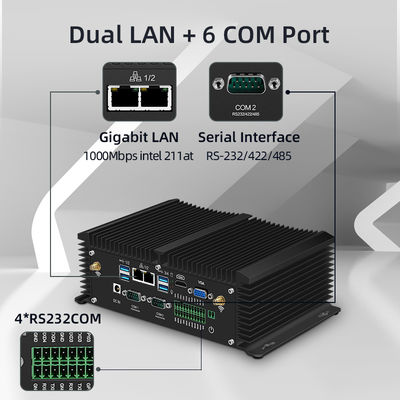

Connectivity	Dual Gigabit Ethernet (Realtek 8111F) Wake on LAN support 8×USB ports RS232 serial port
Power & Environment	DC 12V 5A/60W input (100-240V AC/DC) Operating temperature: -20°C to +65°C Storage temperature: 15°C to 35°C Humidity: 5% to 95% (non-condensing) Power consumption: 15W

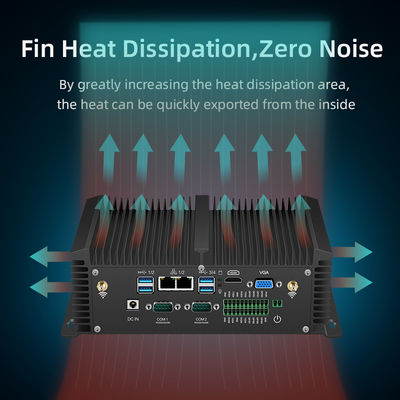

Physical Design	Fanless cooling system Brushed aluminum alloy casing Protective film on surface
OS Support	Windows 8/10, Ubuntu, Linux, CentOS

Package Contents

1× Mini PC
1× Power adapter
2× WiFi antennas
1× SATA power & data cable
1× VESA mount
1× User manual

Warranty

1-year warranty with free repair service. Second and third year offer free repair with parts replacement costs.

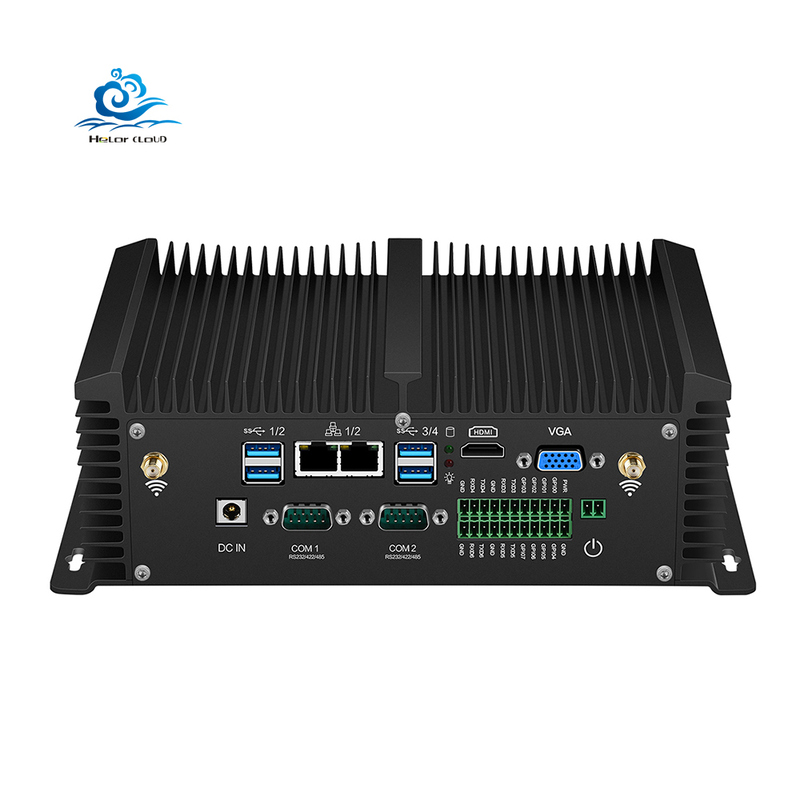

Product Images

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong, has specialized in mini computers since 2013 with our own professional motherboard manufacturer. We've developed over 50 products applied in various fields including AI, office, education, entertainment, advertising, transport, military, and industrial applications.

Our mini PCs are sold in over 60 countries with annual sales exceeding one million units. We carry components from over 20 manufacturers, allowing us to offer leading-edge technology at competitive prices.

Packaging & Shipping

Power Adapter

Multiple specifications available, selected by default based on shipping destination (EU, UK, US, AU, Brazil, etc.). Contact us for special requirements.

Payment Methods

L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Shipping Options

DHL, FedEx, UPS, Aramex, post and Alibaba (choose as preferred).

Frequently Asked Questions

What is the warranty policy?

First year: free repair service. Second and third year: free repair with parts replacement costs.

Can I print my logo on the mini PC?

Yes, please provide your logo file. We will confirm the design before production. OEM/ODM services available.

What is the minimum order quantity?

We can sell single units for testing purposes.

How long does packaging take?

Approximately 3 days for inspection and assembly. 10 units ship in ~3 days, 50 units in ~8 days.

Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.
