Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM 1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer

Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM 1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer

Nama merek:	Helor PC
Nomor Model:	X30G
MOQ:	1 buah
Harga:	213.73usd
Waktu Pengiriman:	15 hari kerja
Ketentuan Pembayaran:	T/T,D/A,D/P,L/C,Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Ce, Rohs, Sgs

Sistem Prosesor:

Penyimpanan:

1*slot M.2, 1*port SATA 3.0

Ingatan:

1*DDR4, hingga 16GB

2 * adaptor Ethernet Gigabit Realtek 8111H

Jenis catu daya:

1 * colokan listrik DC 12V

Suhu Penyimpanan:

0°C hingga +95°C

Suhu Operasional:

0°C hingga +60°C

Kelembaban Penyimpanan:

5% ~ 95%, tanpa kondensasi

Kemasan rincian:

Kotak warna

Menyediakan kemampuan:

50000 buah/bulan

Deskripsi Produk

Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM

1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer

Product Introduction of Industrial PC with N150 Processor

This model is equipped with N150 Processor, featuring a simple and stable 4-core 4-thread architecture. It delivers a max turbo frequency of 3.6 GHz to

meet general data processing demands of industrial control.With 6 MB Intel Smart Cache, it accelerates data read/write and multi-task response to eliminate stuttering.

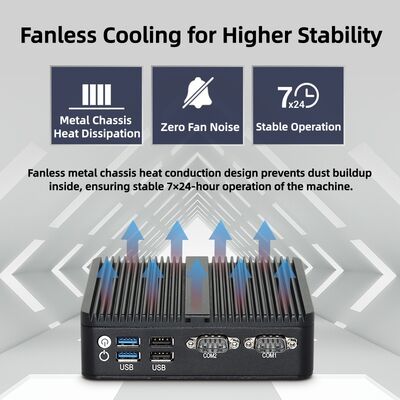

Its base power consumption is merely 6 W, saving power and generating less heat during long-term 7*24-hour continuous operation. It adopts standard 12V DC power

supply with great compatibility. Wide operating temperature ranges from 0℃ to 60℃, suitable for common industrial environments. It supports relative humidity of 5%~

95% without condensation. The compact chassis enables easy embedding, and it supports VESA mounting, wall mounting and desktop placement.

Product Specifications of Industrial PC with N150 Processor

Processor System	N150
Memory	1*DDR4, up to 16GB
Display Interfaces	1DP + 2HD-MI
Storage	1M.2 slot, 1SATA 3.0 port
Front Interfaces	1power switch, 1USB 2.0, 3USB 3.0, 2COM ports, 1*audio jack.
Rear Interfaces	2USB 2.0, 2Gigabit LAN ports, 1DP port, 2HD-MI ports, 1*power jack.
OS Support	Win7, Win10, Win11, ubuntu, LINUX, CENTOS
Operating Temperature	0℃ ~ +60℃
Storage Temperature	0°C to +95°C
Installation Methods	Supports VESA mounting, wall mounting and desktop placement

Product Details of Industrial PC with N150 Processor

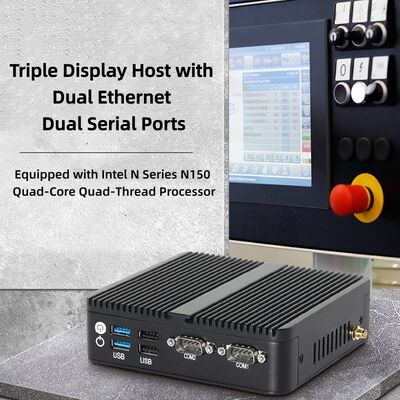

Equipped with N150 Processor, this industrial PC delivers stable and smooth performance. It is fitted with triple display ports including 1*DP + 2*HD-MI, supporting

triple-screen extended or duplicate display. It can fulfill various demands such as multi-screen production line monitoring, multi-screen cashier display and industrial

visual scheduling. Each port supports up to 4K@60Hz ultra-high-definition output with delicate images, perfectly matching industrial displays and high-definition touch

screens.

Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM 1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer 0

Application Scenarios of Industrial PC with N150 Processor

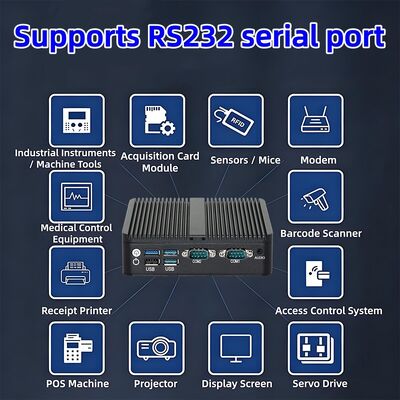

This PC features full-scenario compatibility and is widely applied in industrial sectors, CNC machine tools, production control, digital signage, multimedia education,

turnstile access control systems, self-service inquiry terminals, beverage vending machines, parcel lockers and other scenarios.

Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM 1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer 1

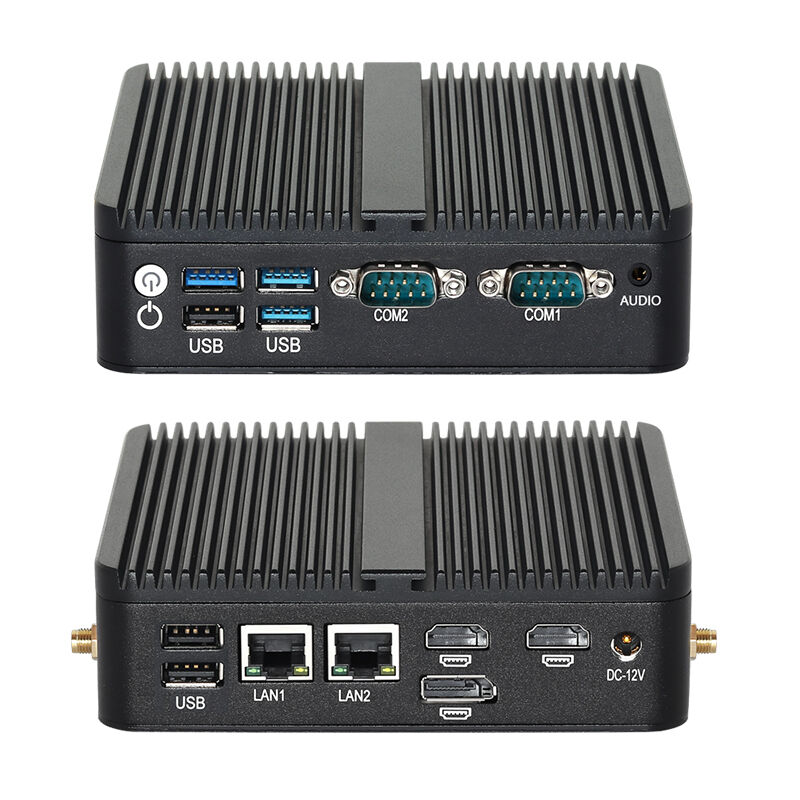

Interface Description of Industrial PC with N150 Processor

This device is equipped with abundant interfaces to cover daily usage requirements. Front interfaces: 1*power switch, 1*USB 2.0, 3*USB 3.0, 2*COM ports, 1*audio jack;

Rear interfaces: 2*USB 2.0, 2*Gigabit LAN ports, 1*DP port, 2*HD-MI ports, 1*power jack.

Industrial Pc N150 Processor 2 Realtek 8111H Gigabit Ethernet Port 2 COM 1 DP 2 HD-MI 3 USB2.0 3 USB3.0 DDR4 Mini Computer 2
